Series: SAPV

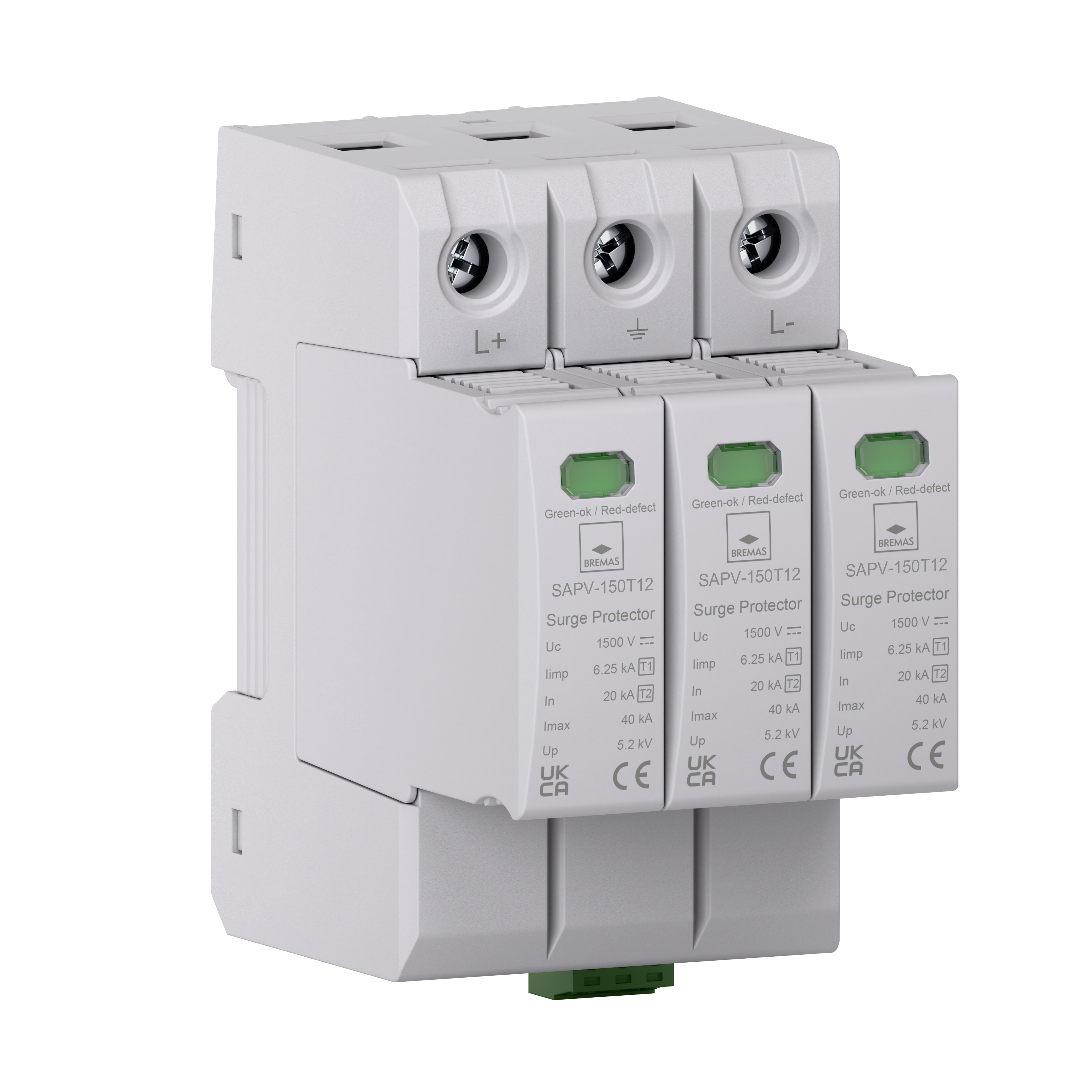

SAPV150T12R
Technical specifications
Specifiche SPD - Scaricatori di sovratensione
| Maximum continuous operating Voltage | 1500 Vdc |
|---|---|
| Rated discharge current (8/20 μs) | 20 kA |
| Maximum discharge current (8/20 μs) | 40 kA |
| Total discharge current (10/350 μs) | 12,5 kA |
| Voltage protection level | 5,2 kV |
| Remote signaling relay | Yes |
| Surge arrester type | Type 1+2 / Class I+II |
| Impulse current (10/350 μs) | 6,25 kA |
