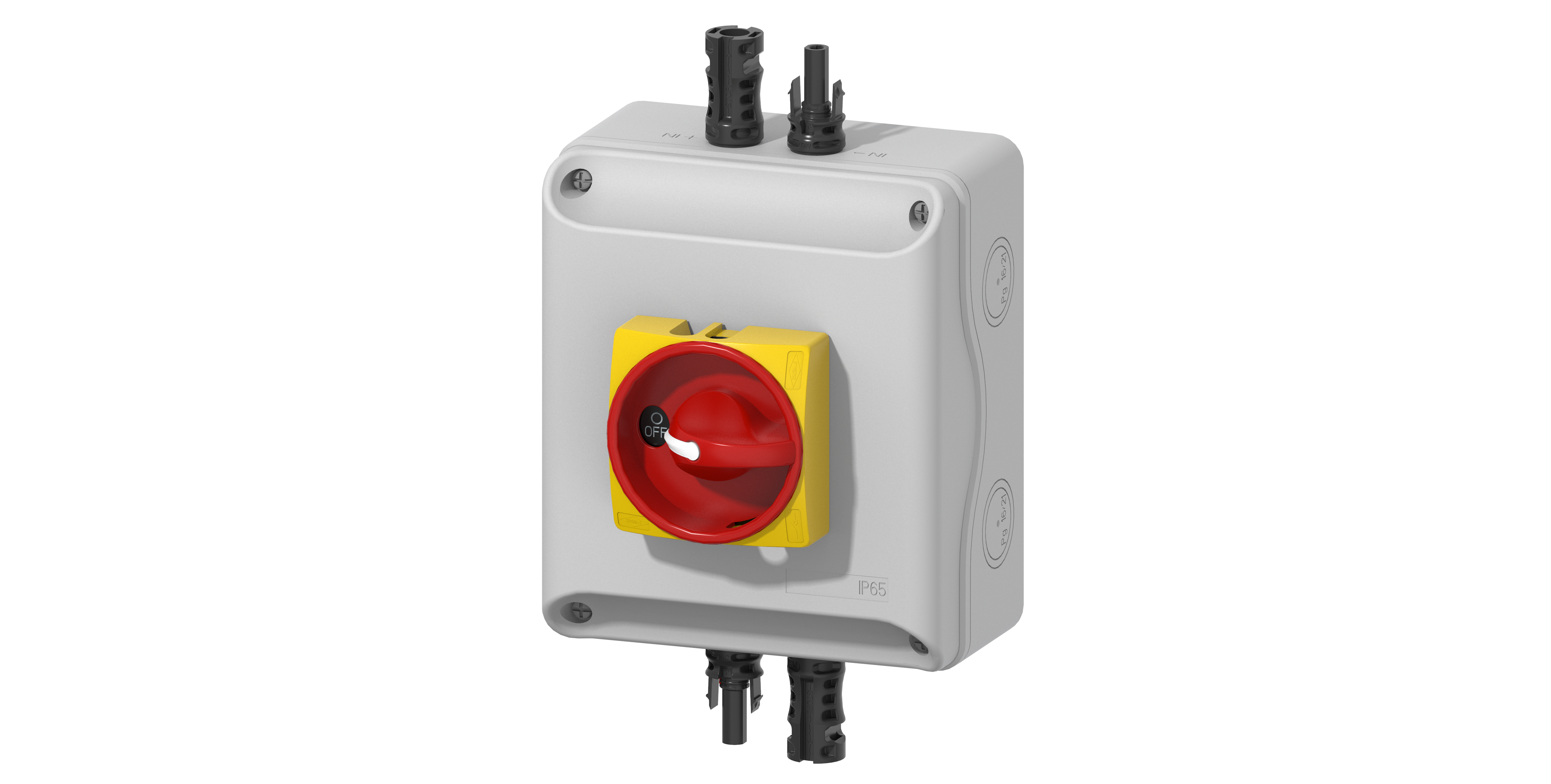

DC isolator switches
Introducing our Bremas Enclosed DC Isolator Switches, designed and manufactured in Italy for maximum efficiency and durability. These top-tier isolators, compliant with IEC EN 60947 standards, offer:
- Current Ratings: From 12 A up to 60 A
- Voltage Ratings: Up to 1500 Vdc
- Switching Capacity: Up to 4 DC poles
- Enclosure: ABS thermoplastic with IP65 protection
- Features:
- Double insulation
- UV-resistant materials
- Lockable handle in the “OFF” position for added safety
- Compact, ergonomic design
- High terminal accessibility
- Cover interlock with knob in "ON" position
These DC isolator switches are ideal for photovoltaic systems, ensuring reliability in harsh conditions with durable materials and advanced safety features.
IBP
Rated operational current at 600 Vdc up to 32 A
Rated operational current at 1000 Vdc up to 12 A
IBK
Rated operational current at 750 Vdc up to 32 A
Rated operational current at 1000 Vdc up to 16 A
IBM
Rated operational current at 700 Vdc up to 40 A
Rated operational current at 1000 Vdc up to 20 A

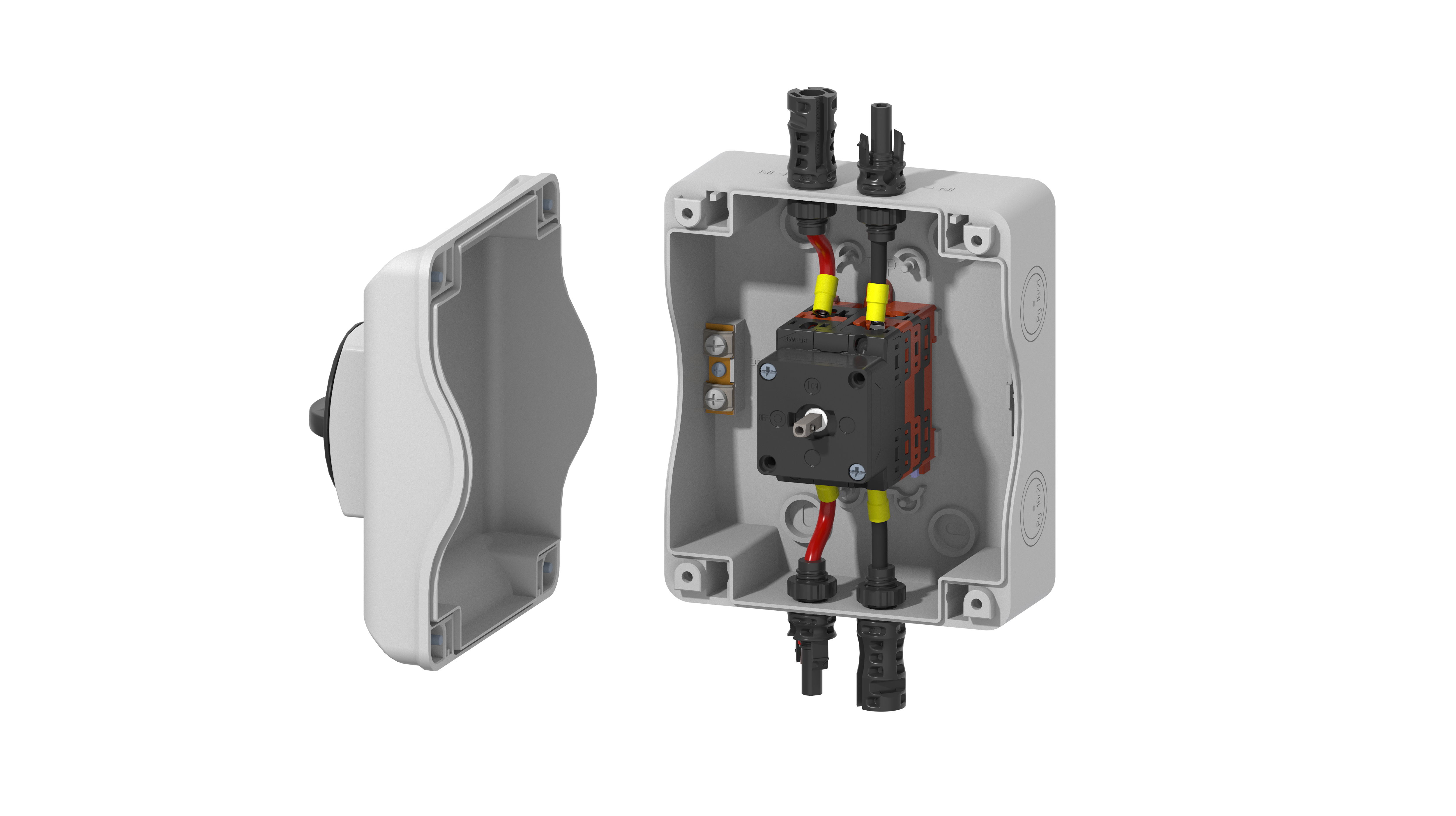

IBX
Rated operational current at 1000 Vdc up to 60 A
Rated operational current at 1500 Vdc up to 30 A
