DC Disconnect switches
Bremas disconnect switches range is designed for safety operations even under load.

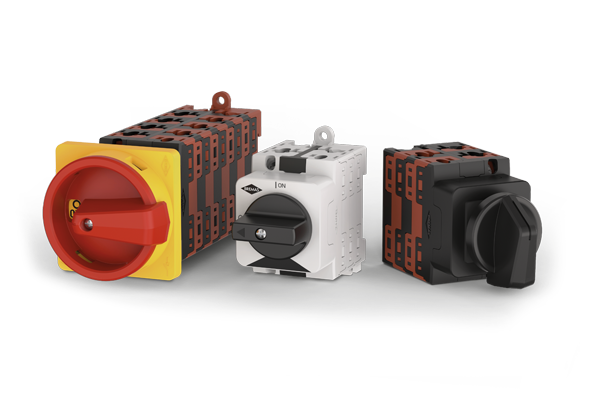

DP-DK-DM-DX disconnect switches series has been specifically designed for DC applications in the solar industry.
In just one size current ratings from 12A to 60A up to 1000VDC and from 10A to 30A at 1500VDC are available. Thanks to its mechanical and electrical characteristics the DP-DK-DM-DX achieves top performances and the highest standards of quality and operational reliability.

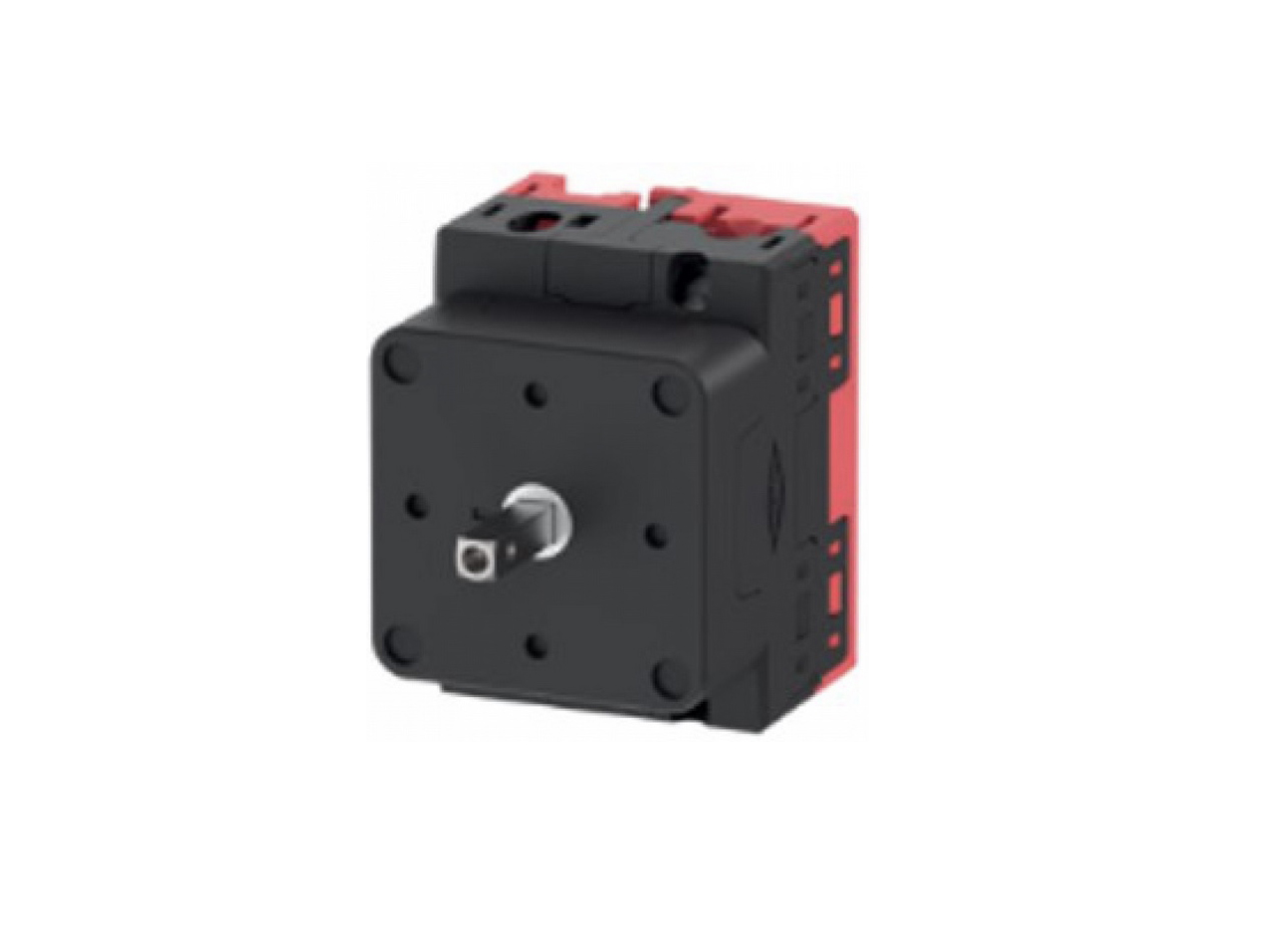

DP
Rated insulation voltage up to 1500V
Rated operational current at 1000V up to 12A PV1

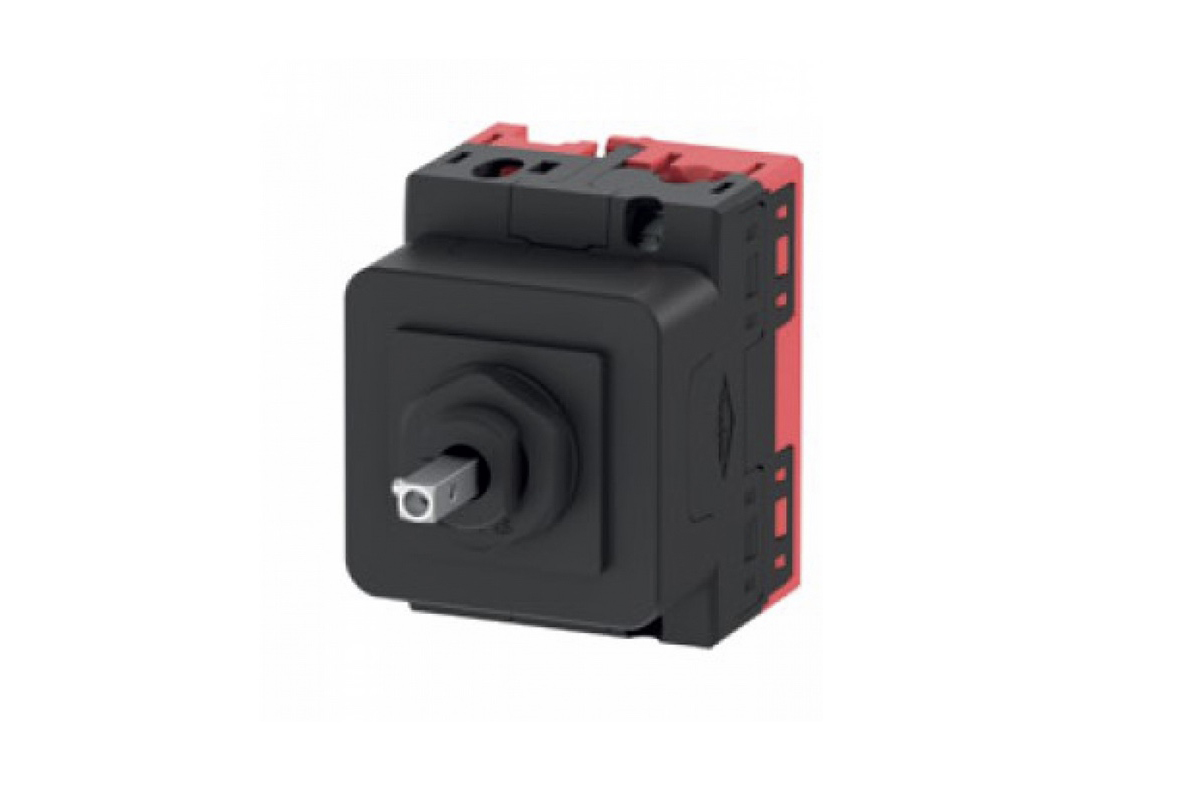

DK
Rated insulation voltage up to 1500V
Rated operational current at 1000V up to 16A PV1

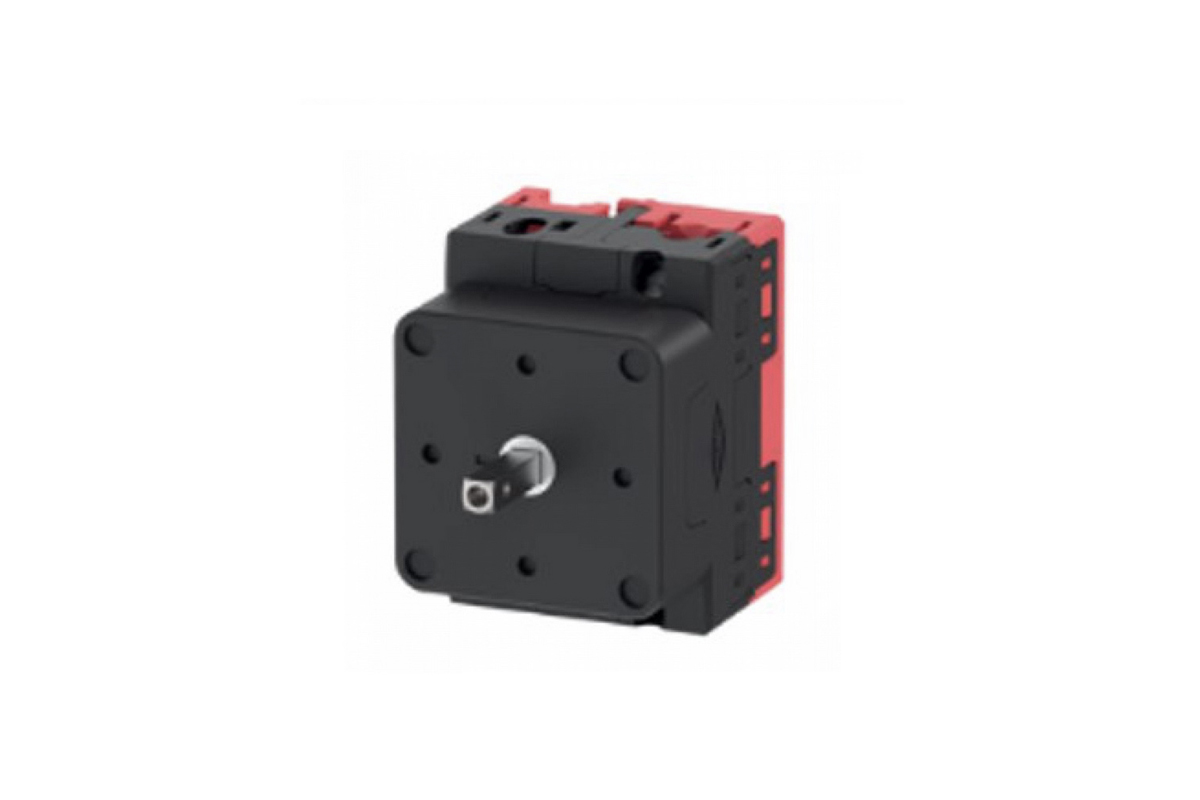

DM
Rated insulation voltage up to 1500V
Rated operational current at 1000V up to 20A PV1

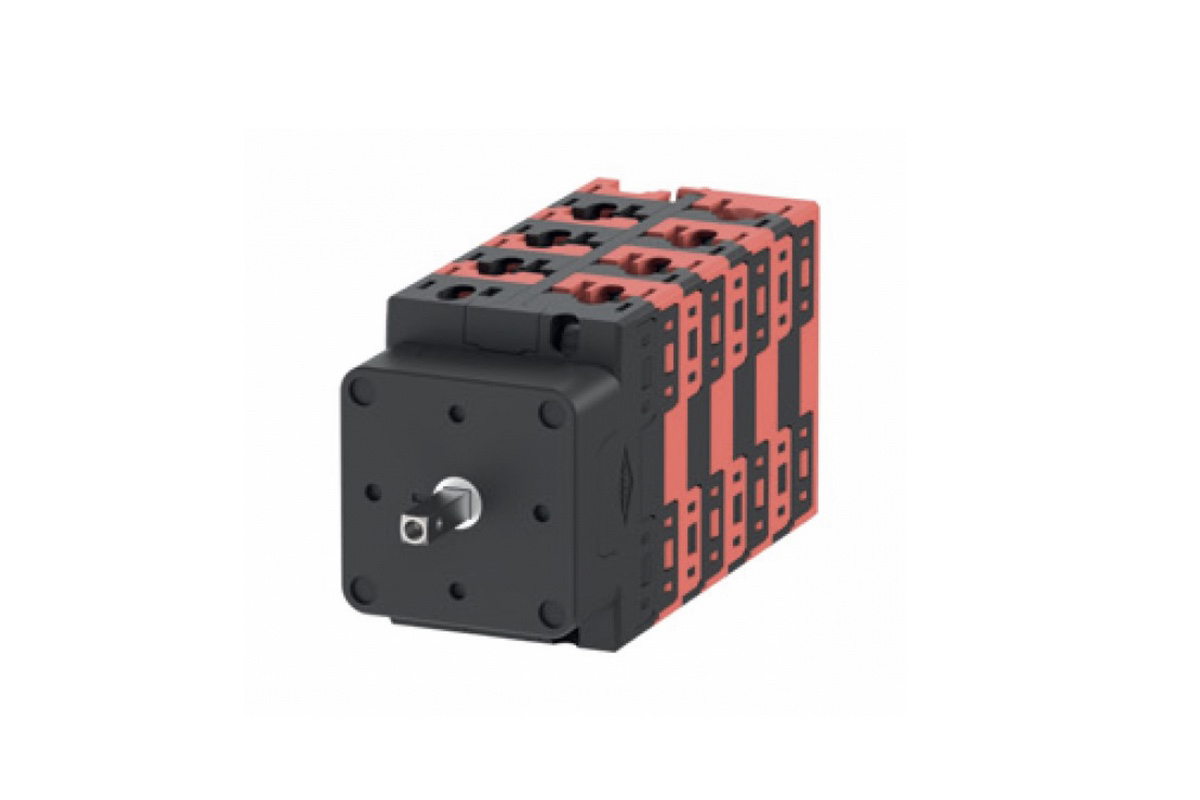

DX
Rated insulation voltage up to 1500V
Rated operational current at 1000V up to 50A PV1
Rated operational current at 1500V up to 30A PV1
