Series: SAPV

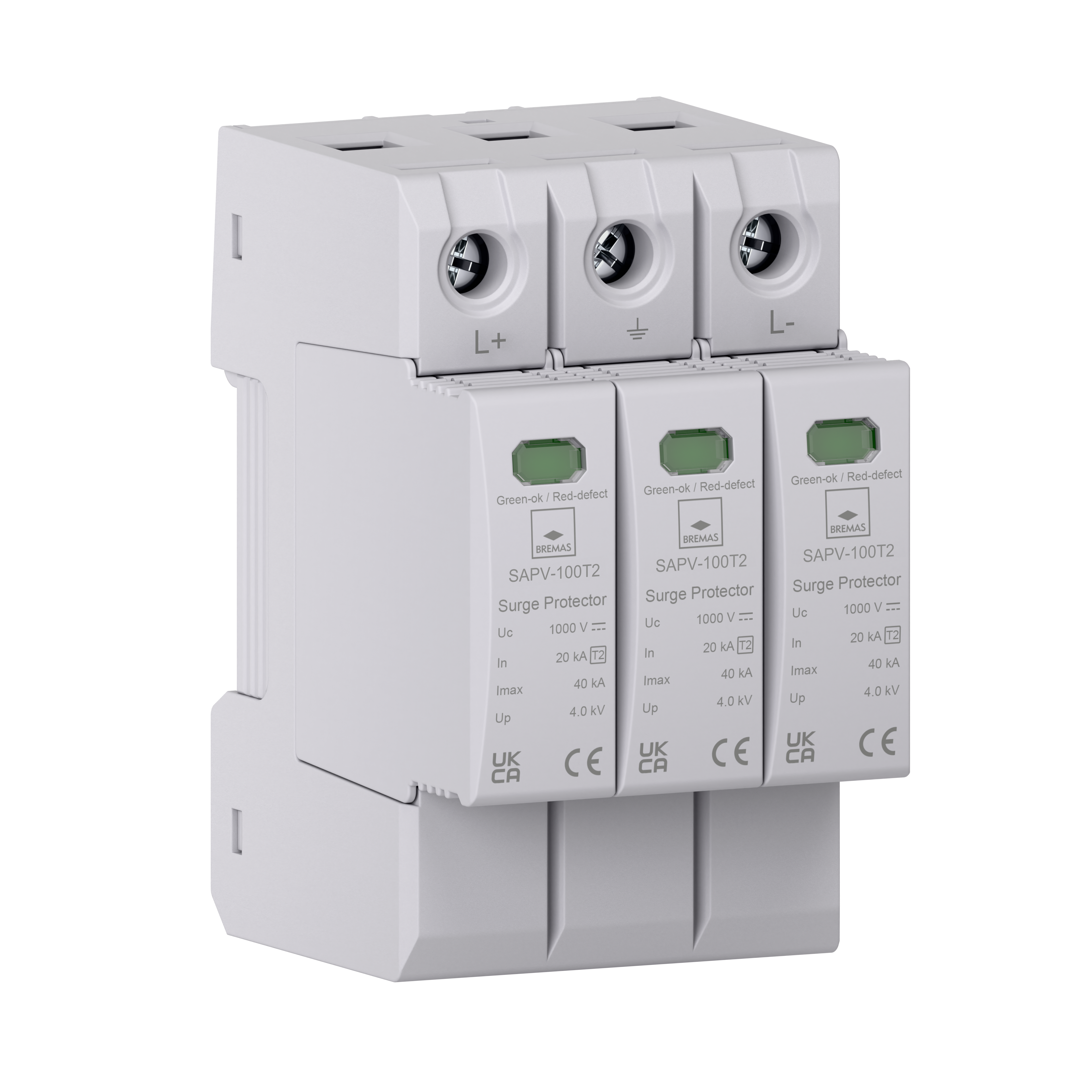

SAPV100T2
Technical specifications
Specifiche SPD - Scaricatori di sovratensione
| Maximum continuous operating Voltage | 1000 Vdc |
|---|---|
| Rated discharge current (8/20 μs) | 20 kA |
| Maximum discharge current (8/20 μs) | 40 kA |
| Total discharge current (10/350 μs) | - |
| Voltage protection level | 4 kV |
| Remote signaling relay | No |
| Surge arrester type | Type 2 / Class II |
| Impulse current (10/350 μs) | - |
