DC Disconnect switches

Bremas disconnect switches range is designed for safety operations even under load.
DP-DK-DM-DX disconnect switches series has been specifically designed for DC applications in the solar industry.
In only one sizes are available current rating from 12A to 60A up to 1000VDC and from 10A to 30A at 1500VDC. Thanks to its mechanical and electrical characteristics the DP-DK-DM-DX achieves top performances and the highest standards of quality and operational reliability.

View detail

CAM Switches

The range of Bremas cam switches boasts 3 highly performing series in line with the highest market standards.
Their characteristics make them the ideal choice for any industrial application.
View detail

Cam switches in box

Bremas offers a complete range of solutions in boxes with cutting-edge construction details and in line with market requirements, which guarantee the suitability in multiple applications: Motor control, inline sectioning, switching.. The cassettes in sizes up to 63A, are made of ABS, while for the sizes of 100A and 200A in sheet.. Versions with front or side control lever are available.
View detail

AC Disconnect switches

The range of Bremas disconnectors includes the DS 20-32-40A, DS 50-63-80-100A, TS and TSC/TSD series with nominal currents from 16A to 2500A.
The contacts are made with silver alloy tablets with double break positive opening, to ensure a high degree of safety and electrical efficiency. The DS 20-100A series of captive screw clamps have an IP20 protection rating and are supplied in the open position to reduce installation time. Additional clamps and accessories available.
View detail

Disconnect switches enclosed

Bremas range of box disconnectors is available with nominal currents from 20A up to 100A and configuration at 3Poli or 4 Poli.
They guarantee an IP65 degree of protection, reaching a rated insulation voltage of up to 800V.
View detail

Power tools swtiches

Bremas power tool switches are suitable for electrical and electromechanical tools. The products are available with lever or trigger switches, in versions ia 2 or 3 poles.
View detail

Limit and Safety switches

Bremas safety position switches are suitable for a wide range of applications.
From light applications to harsh environmental conditions.
Thanks to its solid construction and its long-lasting stability. It is possible to customize the drives and materials of the switch, depending on the specific needs.
View detail

Microswitches

Bremas miniature position switches are extremely compact with a plastic body and metal drives with galvanically separated ZB-shaped contacts.
Upon request available with gold-plated contacts and quick-acting contact elements.
View detail

Multiple position limit switches

Multiple position switches with FMV vertical fixing, are an important resource in the automatic production process, for the control of the positioning or monitoring of the mobile parts of the machine.
Due to their compact design, compared to the functions performed, they offer the best solution for the centralization of the controls of the automatic cycle machine tools.
Multiple position switches are made of painted die-cast metal and feature push-button drives with steel wheel
View detail

Relay sockets

The range of Bremas relay supports includes DIN rail sockets, plug-in modules for interference suppression, clamping springs and marking labels.
The modules are widely compatible with the most popular market standards and have the main international certifications.
View detail
Applications
company
Faqs
Downloads
News
Contacts

	Serie	Codice	PV1 cat. Per polo A	PV1 cat. Per polo B	Elements n.
	DK	DK10016120ATRV4	750V - 32A	1000V - 16A	2
	DK	DK10016120ALMVU5	750V - 32A	1000V - 16A	2

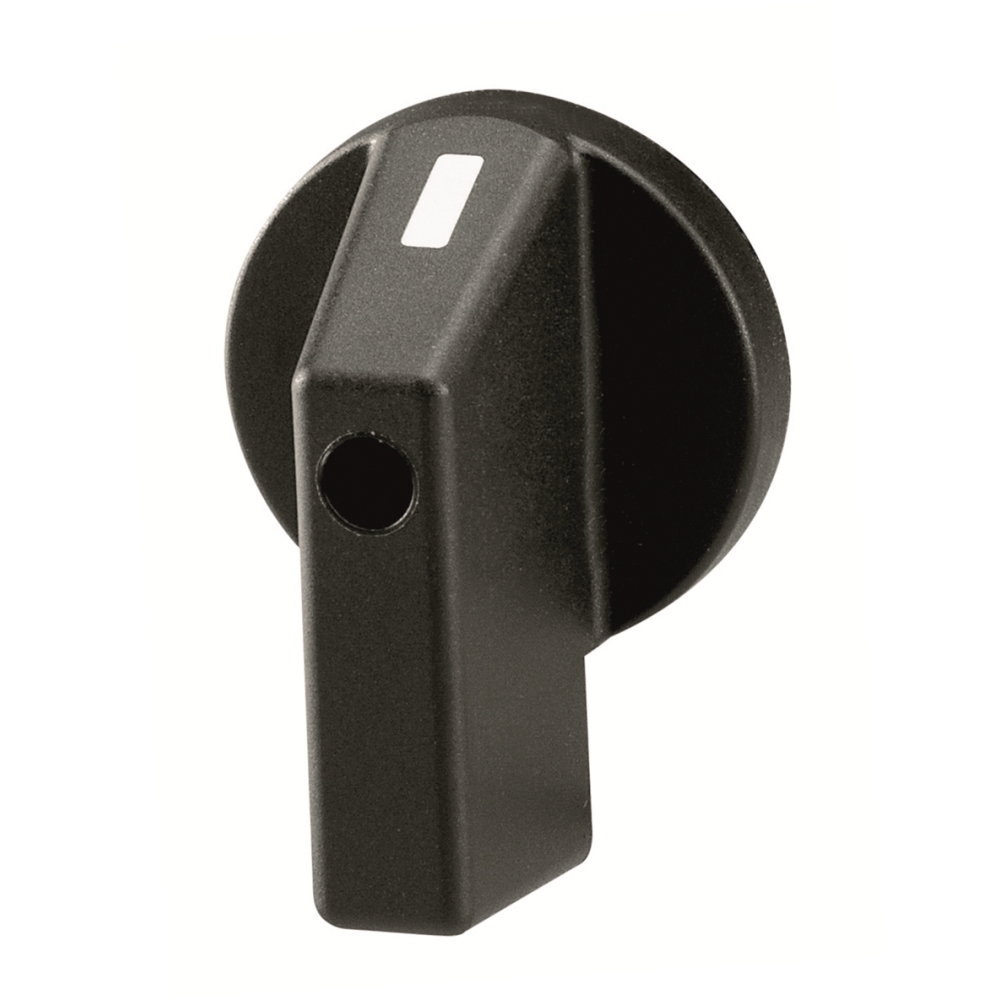

	DK	DK10016120ALMVU6	750V - 32A	1000V - 16A	2
	DK	DK10016120ATRKU6S	750V - 32A	1000V - 16A	2

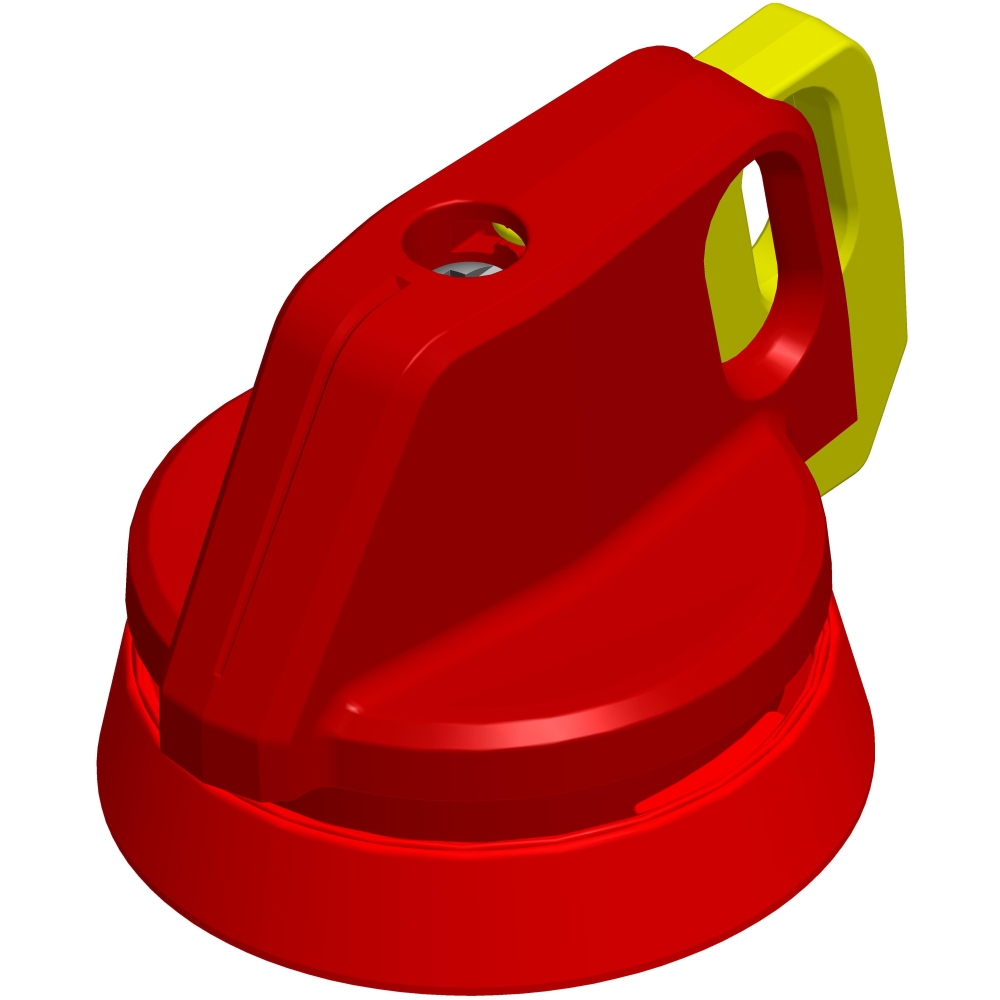

	DK	DK10016120ALML5	750V - 32A	1000V - 16A	2
	DK	DK10016120ALMKU6	750V - 32A	1000V - 16A	2
	DK	DK10016220ATRV4	750V - 32A	1000V - 16A	4
	DK	DK10016220ALMVU5	750V - 32A	1000V - 16A	4
	DK	DK10016220ALMVU6	750V - 32A	1000V - 16A	4
	DK	DK10016220ATRKU6S	750V - 32A	1000V - 16A	4
	DK	DK10016220ALML5	750V - 32A	1000V - 16A	4
	DK	DK10016220ALMKU6	750V - 32A	1000V - 16A	4
	DK	DK10016320ATRV4	750V - 32A	1000V - 16A	6
	DK	DK10016320ALMVU5	750V - 32A	1000V - 16A	6
	DK	DK10016320ALMVU6	750V - 32A	1000V - 16A	6
	DK	DK10016320ATRKU6S	750V - 32A	1000V - 16A	6
	DK	DK10016320ALML5	750V - 32A	1000V - 16A	6
	DK	DK10016320ALMKU6	750V - 32A	1000V - 16A	6
	DK	DK10016420ATRV4	750V - 32A	1000V - 16A	8
	DK	DK10016420AVMVU5	750V - 32A	1000V - 16A	8
	DK	DK10016420AVMVU6	750V - 32A	1000V - 16A	8
	DK	DK10016420ATRKU6S	750V - 32A	1000V - 16A	8
	DK	DK10016420AVML5	750V - 32A	1000V - 16A	8
	DK	DK10016420AVMKU6	750V - 32A	1000V - 16A	8
	DK	DK100161E0ADRND	750V - 32A	1000V - 16A	3
	DK	DK10016120AERW4	750V - 32A	1000V - 16A	2
	DK	DK10016220AERW4	750V - 32A	1000V - 16A	4
	DK	DK10016320AERW4	750V - 32A	1000V - 16A	6
