Technical specifications

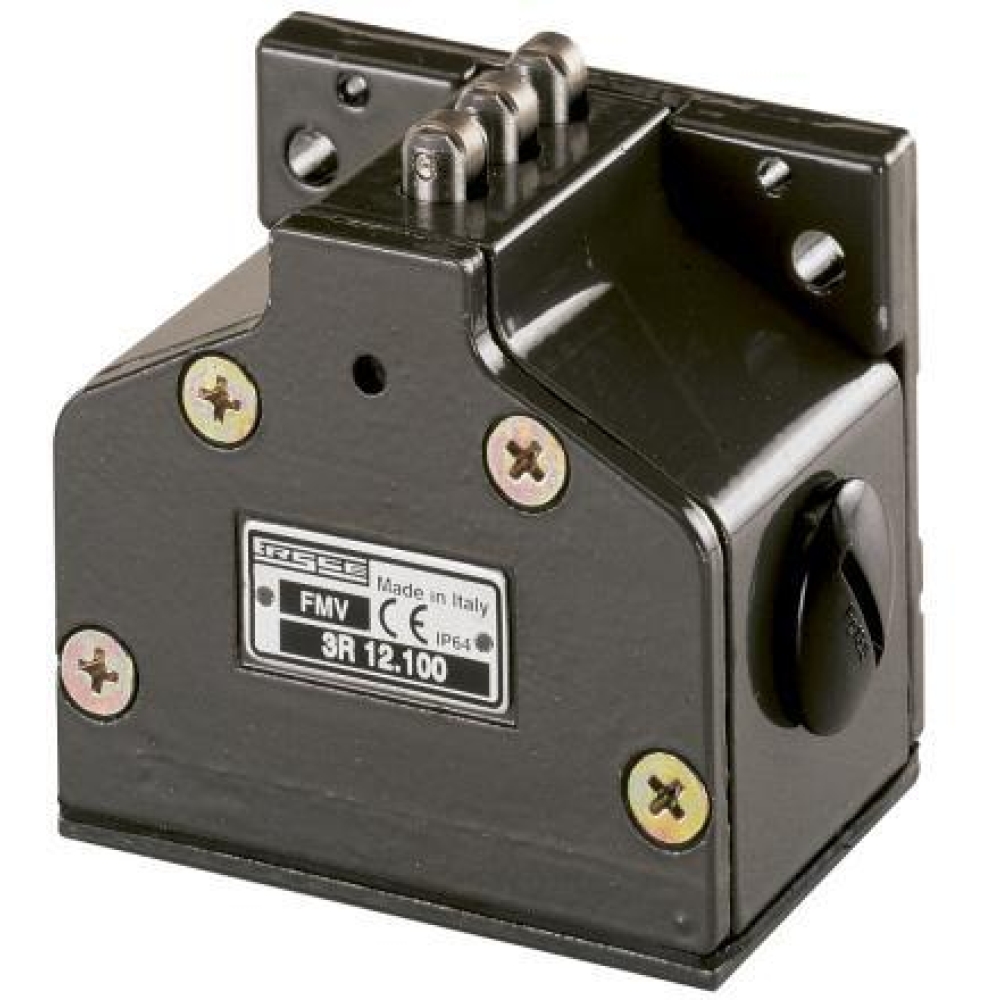

Serie	FMV
Rated insulation voltage	500V
Thermal rated current	10A
Contact elements	1NO+1NC QUICK ACTION
N° roller actuators	4 R
Material	METAL
Use	Industrial Automation
Code	FMV4R12100

Documentation and downloads

Datasheet IT Datasheet EN 2D drawing 3D drawing Istructions Certifications Catalogue chapter REACH statement ROHS statement
