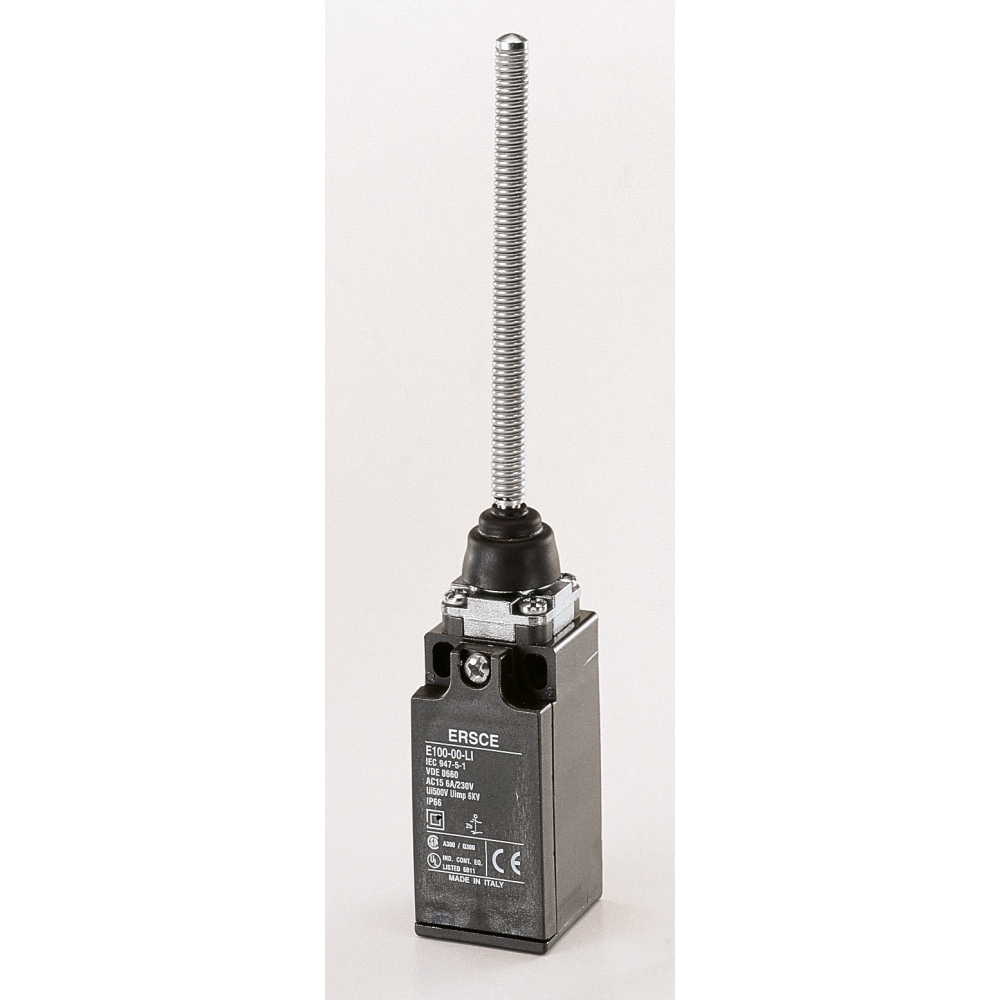

Technical specifications

Serie	E10
Rated insulation voltage	500V
Thermal rated current	10A
Cable entry	1 cable entry
Contact elements	1NO+1NC QUICK ACTION
Actuator type	FLEXIBLE ROD
Material	METAL BODY / METAL HEAD
Use	Industrial Automation
Code	E10000LM

Documentation and downloads

Datasheet IT Datasheet EN 2D drawing 3D drawing Istructions Certification 1 Catalogue chapter REACH statement ROHS statement
