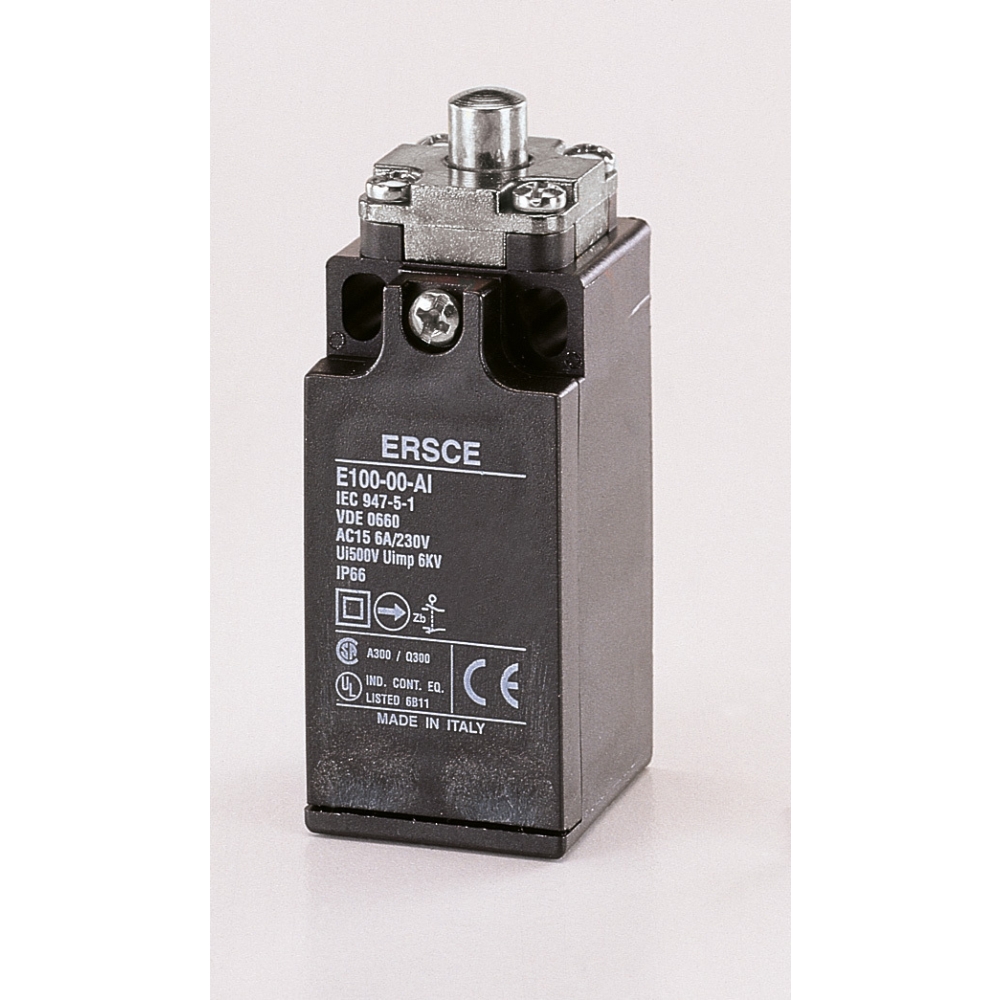

Technical specifications

Serie	E10
Rated insulation voltage	500V
Thermal rated current	10A
Cable entry	1 cable entry
Contact elements	1NO+1NC QUICK ACTION
Actuator type	STEEL BUTTON
Material	PLASTIC BODY / PLASTIC HEAD
Use	Industrial Automation
Code	E10000AP
